Bowstring Bridge Type 2 – 20 × 17 mm

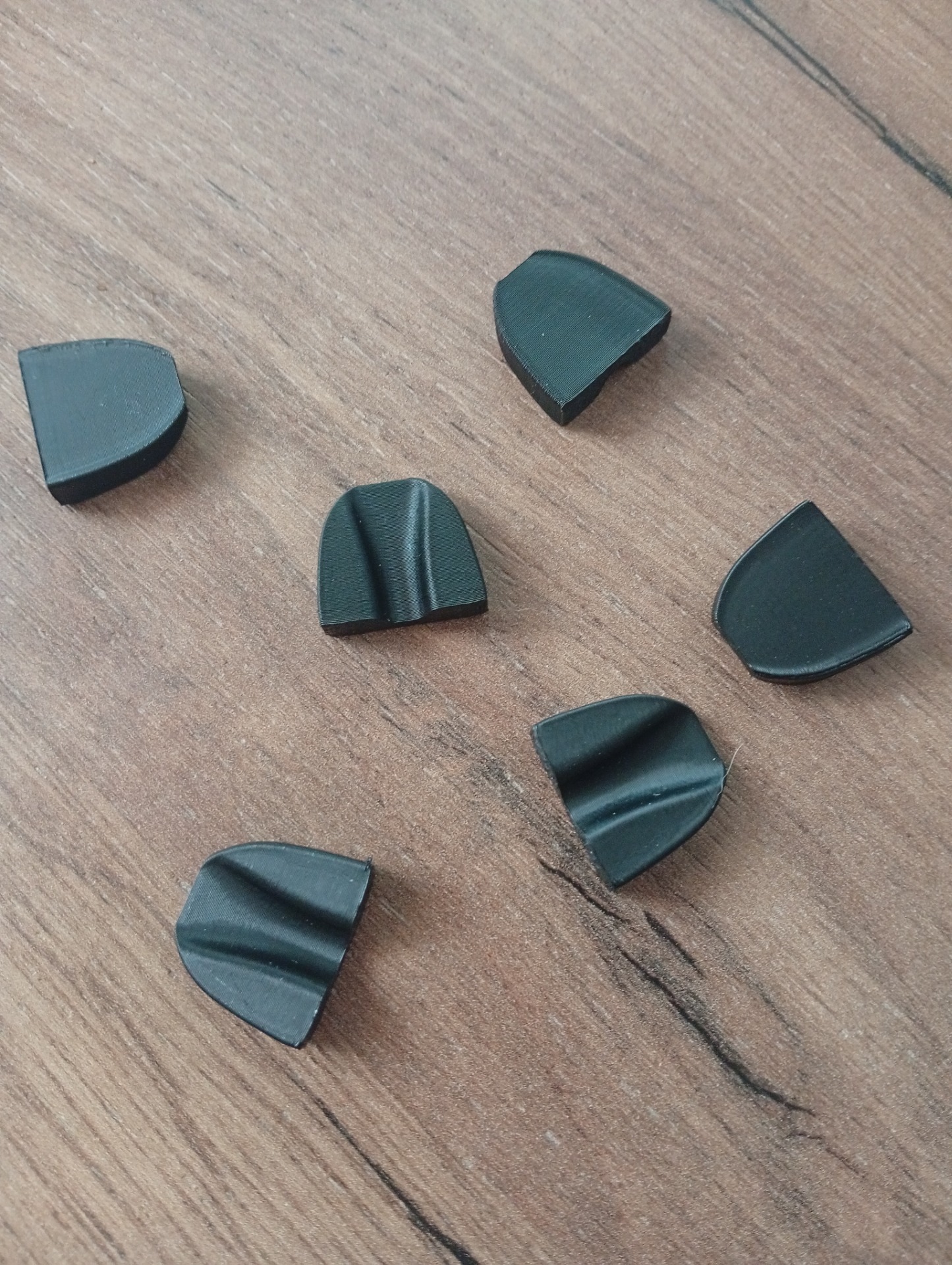

The Bowstring Bridge Type 2 is a plastic guiding component for compatible bows that use auxiliary bowstring guidance.

Its purpose is to help the string return toward the intended central position after the shot.

What is a bowstring bridge?

A bridge is a small component installed on the inner side of the bow.

It assists with controlled string tracking during the bow's return cycle.

Type 2 dimensions

Type 2 measures:

• 20 mm wide,
• 17 mm long.

This gives it a wider and shorter footprint than other bridge variants.

Wider contact area

The 20 mm width makes it suitable for bow profiles that provide a wider bonding surface.

Shorter mounting length

The 17 mm length can suit areas where longitudinal mounting space is more limited.

Pair of two

The package contains two pieces:

• one upper bridge,
• one lower bridge.

Not an arrow rest

This product is not an arrow rest.

Its purpose is bowstring guidance.

Not a string stopper

It is also not primarily a dampener or string stopper.

Glued installation

The bridge is glued to the inner side of the bow.

Correct placement is essential.

Dry-fit first

Before applying adhesive, check:

• dimensions,
• contact area,
• orientation,
• string path,
• upper/lower alignment.

Compatibility

Type 2 is not universally compatible with every reflex or Asiatic bow.

The actual bow profile and geometry determine suitability.

Replacement use

It may be used as a replacement part when its dimensions and position match the original component.

Regular inspection

Check regularly for:

• lifting adhesive,
• cracks,
• deformation,
• sharp edges,
• string wear.

Frequently Asked Questions

What is Bowstring Bridge Type 2?

A plastic string-guiding component installed on the inner side of a bow.

What size is it?

20 × 17 mm.

Which measurement is the width?

20 mm.

Which is the length?

17 mm.

Why is Type 2 different?

It provides a wider contact area with a shorter mounting length.

How many pieces are included?

Two.

Is it an arrow rest?

No.

Is it a vibration dampener?

Not according to the current product specification.

Is it universal?

No.

How is it installed?

By gluing it to the inner side of the bow.

Which adhesive should be used?

No specific adhesive is currently specified.

Final Summary

Bowstring Bridge Type 2 – 20 × 17 mm – Plastic – Pair is a guiding component for compatible bows requiring a wider but shorter bridge footprint.

Key specifications:

• 20 × 17 mm
• technical plastic
• 2-piece pair
• glued installation
• upper and lower placement
• wider contact area
• shorter mounting length
• bowstring guidance and recentering.
