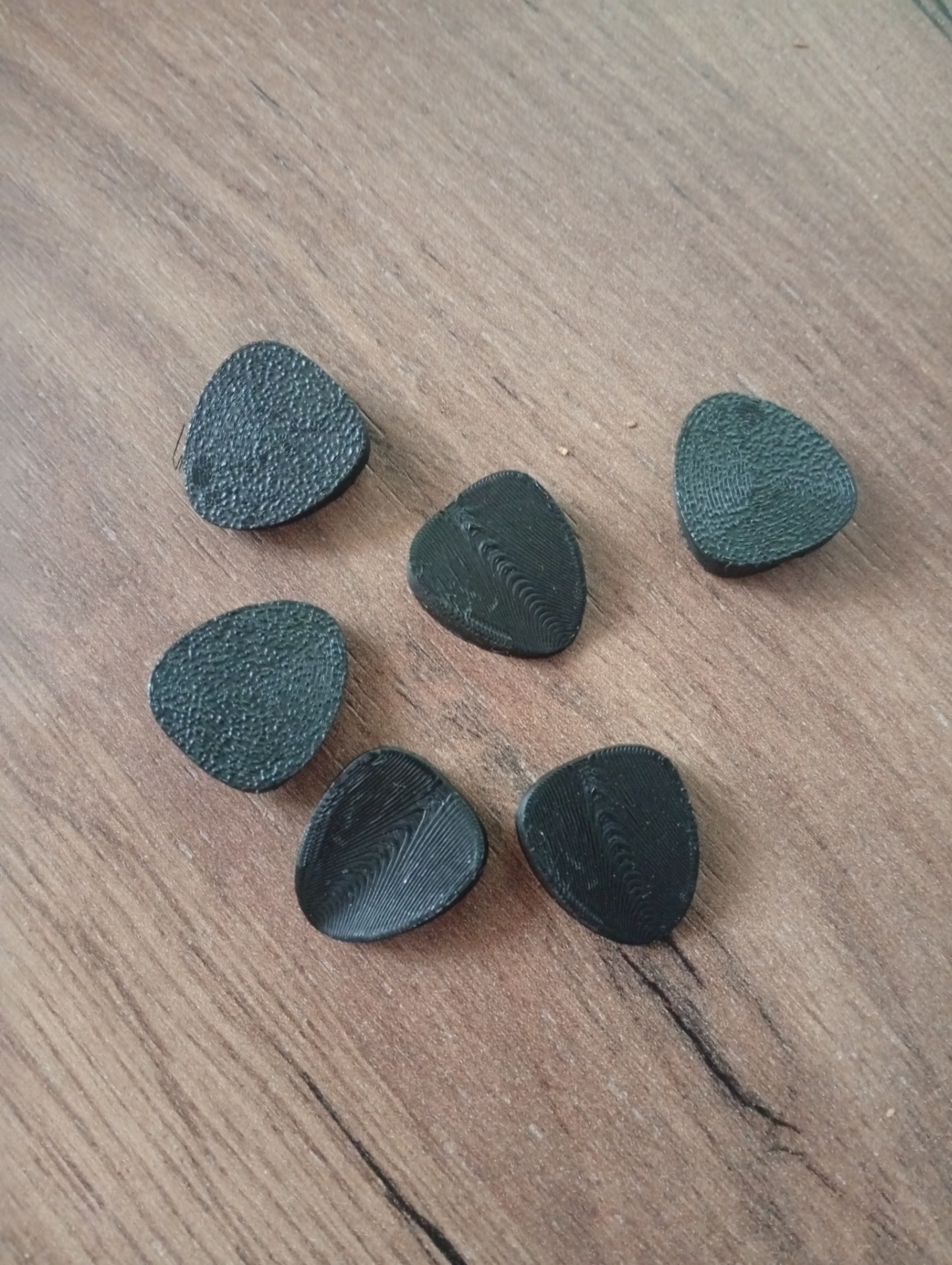

Bowstring Bridge Type 1 – 17 × 20 mm

The Bowstring Bridge Type 1 is a small plastic component designed to help guide the bowstring on compatible bow constructions.

What is a bowstring bridge?

The bridge is installed on the inner side of the bow.

Its function is to help guide the string as it returns after the shot.

Not an arrow rest

This product is not an arrow rest.

Its purpose is bowstring guidance.

Not a string stopper

It is also not described as a vibration dampener or string stopper.

Its primary role is string centering and tracking.

Type 1 dimensions

The Type 1 measures:

• 17 mm wide,
• 20 mm long.

Supplied as a pair

The package contains two pieces.

One is used on the upper and one on the lower part of the bow.

Technical plastic

The exact polymer is not specified, so it should simply be described as technical plastic.

Glued installation

The bridge is attached by adhesive to the inner side of the bow.

Correct positioning is essential.

Check compatibility first

The bridge is not universal.

Before ordering, verify:

• mounting width,
• inner profile,
• curvature,
• string position,
• available bonding area.

Dry-fit before gluing

Always test the position without adhesive first.

Check that both pieces sit correctly and that the string follows the intended path.

Inspection after installation

After the adhesive has fully cured, check:

• secure attachment,
• correct string path,
• absence of sharp edges,
• symmetrical positioning.

Regular inspection

Periodically check the bridge for:

• lifting edges,
• cracks,
• deformation,
• movement,
• string wear.

Frequently Asked Questions

What is a bowstring bridge?

A small guiding component that helps the string return toward the correct position.

Is it an arrow rest?

No.

Is it a string stopper?

No, according to the available product data.

What size is Type 1?

17 × 20 mm.

How many pieces are included?

Two.

Why two?

One for the upper and one for the lower part of the bow.

What is it made from?

Technical plastic.

How is it installed?

By gluing it to the inner side of the bow.

Is it universal?

No.

Which adhesive should I use?

No specific adhesive is currently specified. It must be compatible with both the bridge and the bow surface.

Final Summary

Bowstring Bridge Type 1 – 17 × 20 mm – Plastic – Pair is a guiding component for compatible bows that use string bridges.

Key specifications:

• 17 × 20 mm,
• technical plastic,
• 2-piece pair,
• glued installation,
• upper and lower bow placement,
• bowstring guidance and recentering.

Correct compatibility and positioning should always be checked before permanent installation.
