Arrow Point Clamp & Thread Cutter for Wooden Arrows – Erenhill
Making or servicing wooden arrows requires more than selecting the correct shaft and point. Accurate preparation and alignment are also important.
The Arrow Point Clamp & Thread Cutter – Erenhill is designed for archers who build, assemble or maintain their own wooden arrows.

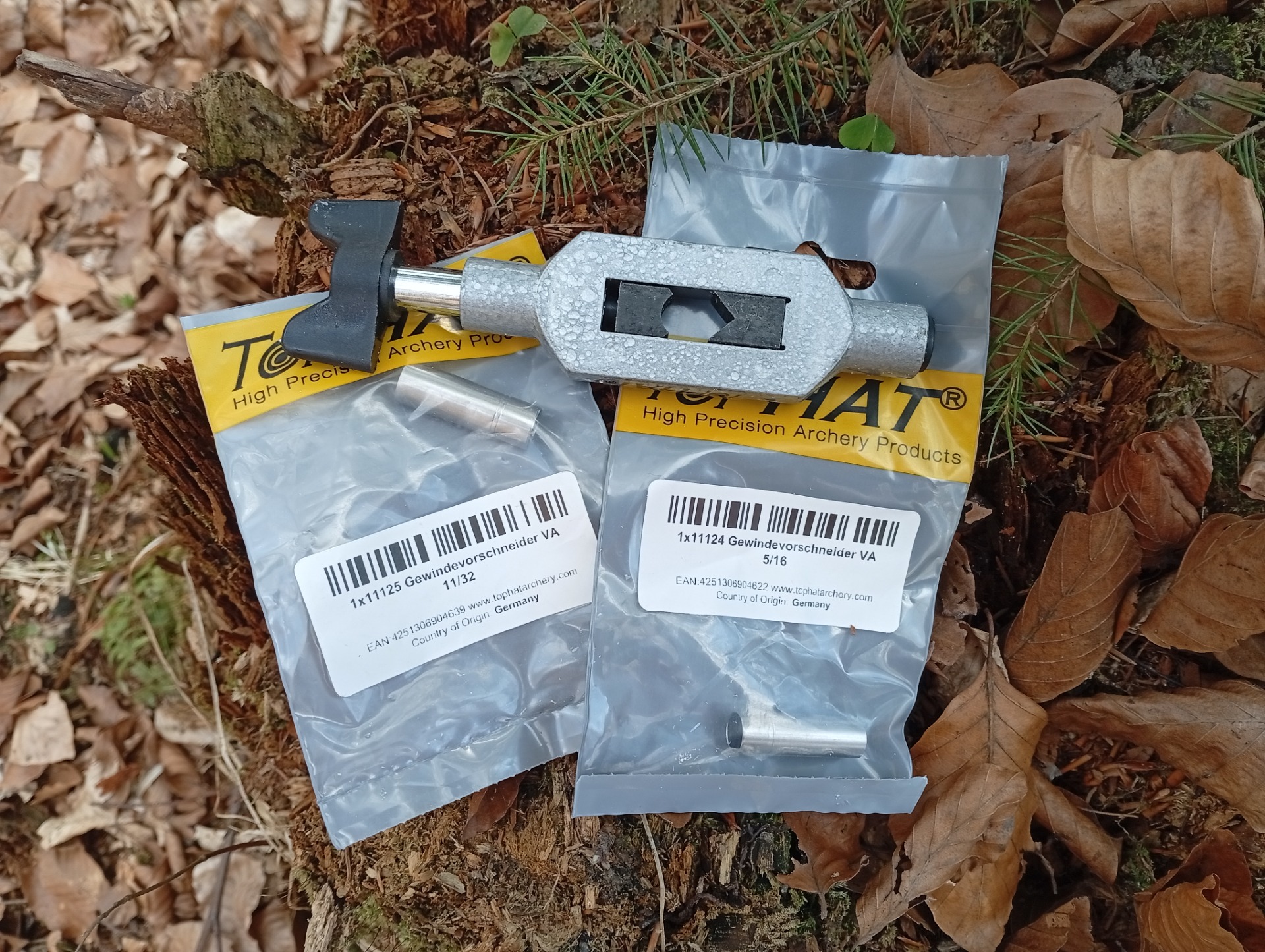

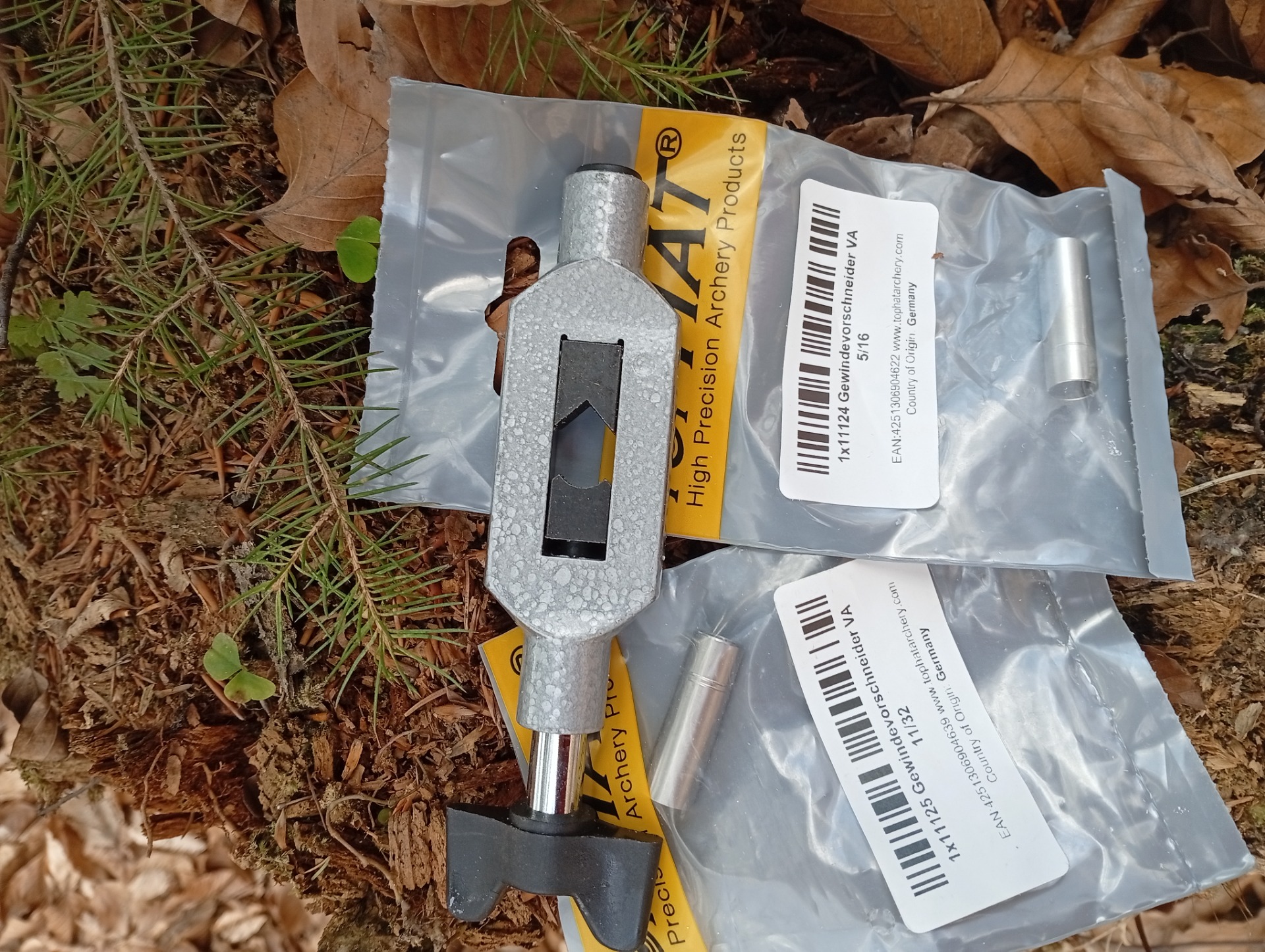

Three separate variants
This product is offered as three selectable variants:
- metal arrow point clamp,
- 8.0 mm thread cutter,
- 8.7 mm thread cutter.
They are not automatically supplied as one complete three-piece set.
Wooden arrow thread cutter
The cutter prepares the end of a wooden shaft for the installation of a compatible threaded arrow point.
A correctly prepared end should be as even and coaxial as possible.
Why point alignment matters
A visibly misaligned point may wobble when the arrow is rotated.
It can also alter mass distribution and create inconsistent behaviour between arrows in the same set.

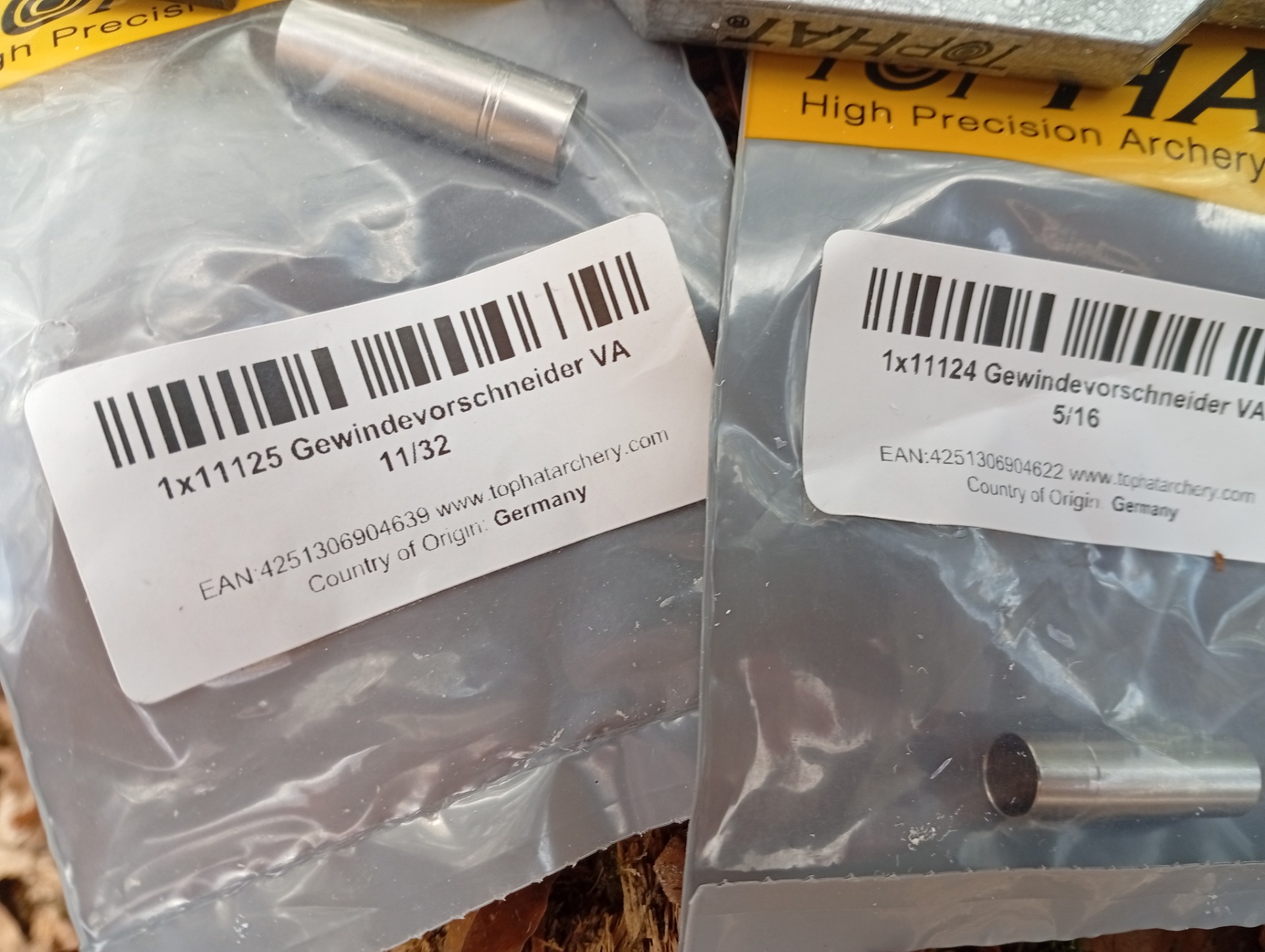

8.0 mm / 5/16-inch cutter
The 8.0 mm version is intended for wooden shafts in the approximately 5/16″ size group.
Always verify actual shaft diameter before cutting.
8.7 mm / 11/32-inch cutter
The larger version is designed for approximately 8.7 mm / 11/32″ wooden shafts.
Again, actual shaft size should be measured first.
Arrow point clamp
The metal clamp provides a firmer grip on the arrow point during installation.
This can make controlled turning and accurate positioning easier.
Wooden shafts only
The cutters are intended for wooden arrows.
They are not specified for aluminium or carbon shafts.
Point compatibility
Shaft diameter alone does not guarantee compatibility with every threaded arrow point.
The point system, internal profile and required shaft dimensions must also match.
Harder woods
Current product information states that the cutters can also be used with denser or harder wood.
Avoid excessive force, as this may damage the shaft or cutting tool.
Safety
The cutter has sharp working edges.
Use it on a stable work surface, keep fingers clear of the cutting area and store it safely away from children.
Frequently Asked Questions
What is the thread cutter used for?
To prepare a wooden arrow shaft for a compatible threaded point.
What is the metal clamp used for?
To hold an arrow point securely during installation.
Are all three tools included together?
No. They are separate selectable product variants.
What is the 8.0 mm cutter for?
Wooden shafts around 8.0 mm / 5/16″.
What is the 8.7 mm cutter for?
Wooden shafts around 8.7 mm / 11/32″.
Should I measure the shaft first?
Yes.
Can it be used on carbon arrows?
No according to the current product specification.
Can it be used on aluminium arrows?
No according to the current product specification.
Can it cut harder wood?
Yes according to the supplied product data.
Will it fit every threaded arrow point?
Not automatically. Point-system compatibility must also be checked.
Can it repair a cracked wooden shaft?
No. Structurally damaged shafts should not be reused.
Final Summary
Arrow Point Clamp & Thread Cutter for Wooden Arrows 8.0 / 8.7 mm – Erenhill provides three selectable workshop tools:
- a metal point clamp,
- an 8.0 mm / 5/16″ wooden-shaft cutter,
- an 8.7 mm / 11/32″ wooden-shaft cutter.
They are intended for archers who want greater control when preparing wooden shafts and installing compatible threaded arrow points.
